Introduction: The Ultimate in Heavy-Duty Security and Versatility
In industrial environments where both security and organization are non-negotiable, having a dependable storage solution is essential. This Secure Multi-Function Industrial Storage Cabinet, made from high-quality sheet metal, offers the ultimate balance of durability, smart storage layout, and multi-functional utility. Designed for storing tools, documents, cash, or other valuable items, this unit brings industrial-grade toughness to settings like factories, workshops, utility rooms, and logistics centers.
This post delves into the full details of the product, including its technical specifications, structural integrity, features, and value across a wide range of applications. Let’s explore why this cabinet is the ideal custom metal fabrication solution for industries demanding high-security storage and dependable performance.
Built to Last: Why Sheet Metal Makes All the Difference
Sheet metal is one of the most preferred materials in custom cabinet fabrication, especially for heavy-duty applications. Its strength, malleability, and corrosion resistance make it a natural fit for industrial and commercial settings. The Secure Multi-Function Industrial Storage Cabinet is constructed using thick gauge sheet metal, offering both structural stability and resistance to warping or damage under continuous use. Additionally, powder coating or baked enamel finishes can be applied to resist environmental exposure and give the cabinet a sleek, professional look that withstands the test of time.
This product’s build quality ensures that it will not only serve you for years but also protect its contents from unauthorized access, wear, and mechanical stress.
Product Parameters
Overall Dimensions: 500 (D) * 700 (W) * 1800 (H) mm
Weight: 85 kg
Material: Cold-rolled steel (customizable thickness: 1.2 mm – 2.0 mm)
Finish: Black powder coating exterior, blue powder-coated interior
Security: Dual locking system – mechanical + key
Internal Shelving: 3 sections, adjustable shelving options
Application: Workshops, warehouses, logistics, factories, security offices
Customization: Available for internal layout, logo branding, lock types, and color
Mounting: Free-standing with optional anchoring holes
Ventilation: Optional perforated vents or fan cutouts for heat-sensitive storage
Door Type: Single full-height door with reinforced hinges and internal wiring cutouts
Fire Resistance: Optional fireproof linings or fire-resistant powder coatings available
Product Features
The Secure Multi-Function Industrial Storage Cabinet is engineered with a purpose: to provide secure, organized, and highly accessible storage in demanding work environments. It features a tall vertical design with spacious internal sections, including upper and lower compartments for organized sorting. The entire body is fabricated using CNC laser-cut sheet metal panels, which are then folded and welded for a seamless, high-tolerance assembly.
The front-opening door is reinforced and equipped with dual-point locks, allowing high-security access control to users. Internally, the structure includes an adjustable shelving system which can be customized with drawers, document trays, or equipment holders. The lower compartment even includes a mini-lockbox for cash or sensitive material – a feature especially valued in settings like logistics warehouses or utility centers where both tools and documents are stored together.
Another highlight is the inner door layout, which features a smart blue powder-coated panel with mounted accessories for small items, such as envelopes, clips, keycards, or even a glovebox for technician work. Its interior design is not only efficient but also surprisingly spacious, accommodating large hand tools, measuring instruments, or multiple binders without clutter.
What sets this product apart is its modularity. With sheet metal as the core material, every surface can be modified with minimal tooling. From additional cutouts to reinforced electronic compartments or even LED light strips—this cabinet adapts to the customer’s unique operational demands. If you’re a factory needing barcode scanners and routers housed inside, or a data center seeking a small control panel—this cabinet can handle it all.
The material coating is another layer of quality. The external body is coated in matte black powder, ensuring fingerprint resistance, scratch protection, and a clean look that fits into almost any modern industrial décor. The contrast of the bright blue internal panel offers visual clarity, helping users locate smaller items or read documents easily. This design not only adds functionality but provides a visually appealing storage solution suitable for semi-public or employee-only environments.
Moreover, the base of the cabinet is designed with a slightly elevated plinth and optional anchoring slots. This helps protect it from water damage on warehouse floors and allows it to be securely bolted to the ground for added theft protection or during seismic activity.
Product Structure
The cabinet is composed of four primary structural modules: the external frame, internal shelving system, front door with mounted accessories, and base locking system. Each component plays a vital role in maintaining the cabinet’s strength and functionality.
1. External Frame
The external frame is laser-cut from cold-rolled steel panels, ensuring uniform flatness and minimal weld seams. It is bent and folded to create a box-style vertical cabinet with stiffening ribs integrated into side panels. These ribs increase load-bearing capacity and prevent metal fatigue over time. Additionally, the rear panel includes optional slots for cable management or wall-mount adapters if needed.
Ventilation slots or fans can be installed on the side or rear, especially if the cabinet houses electronic devices. The paint finish on the frame uses industrial-grade powder coating that undergoes a multi-step treatment process, including degreasing, phosphate coating, baking, and drying, to ensure adhesion and corrosion resistance.
2. Internal Shelving and Compartments
Inside, the cabinet is divided into multiple compartments that are either fixed or adjustable. Shelves can be mounted on rail systems for sliding access or held in place with heavy-duty brackets. Each shelf is capable of supporting upwards of 30–50 kg depending on configuration. The bottom compartment features a small, lockable drawer box, ideal for cash storage or sensitive documents. This is particularly useful in tool distribution centers or warehouse receiving stations where control over valuable items is essential.
Hooks or mounting brackets can also be added depending on the client’s operational workflow. For instance, some clients may request hooks for hanging gear or brackets to hold industrial bar scanners, routers, or label printers.

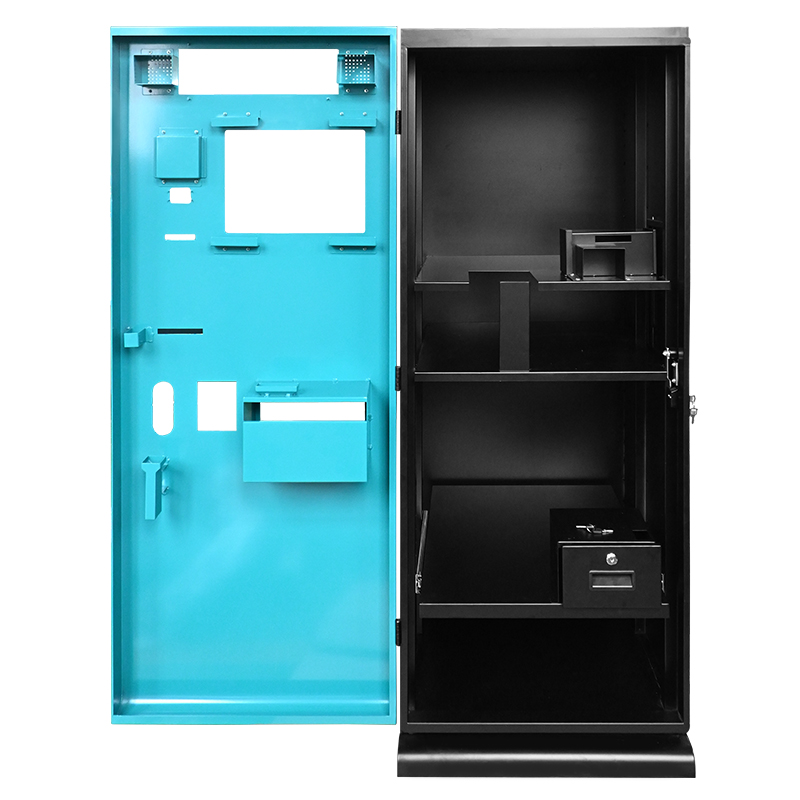

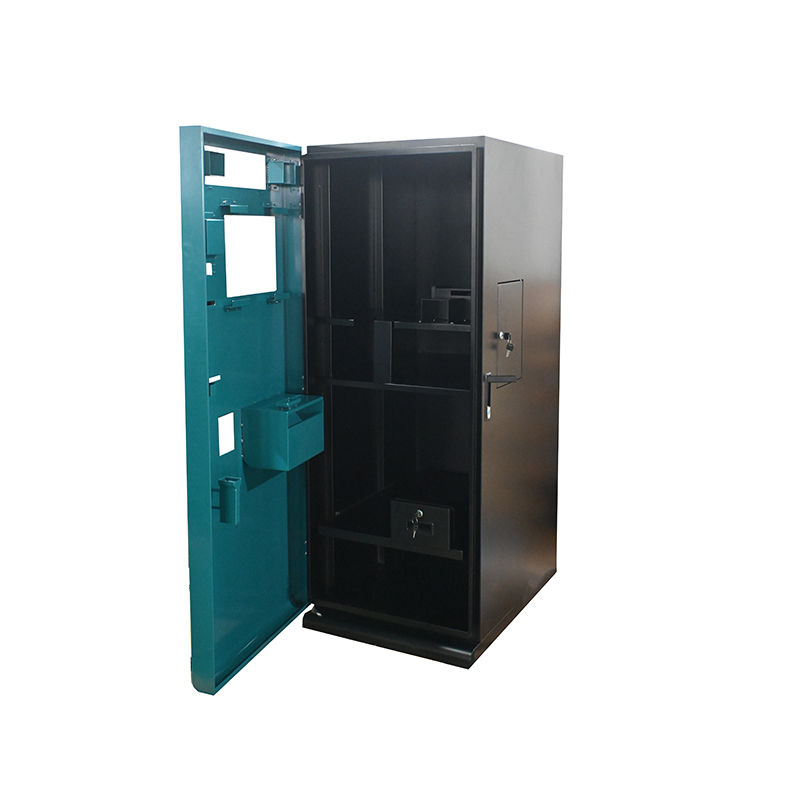

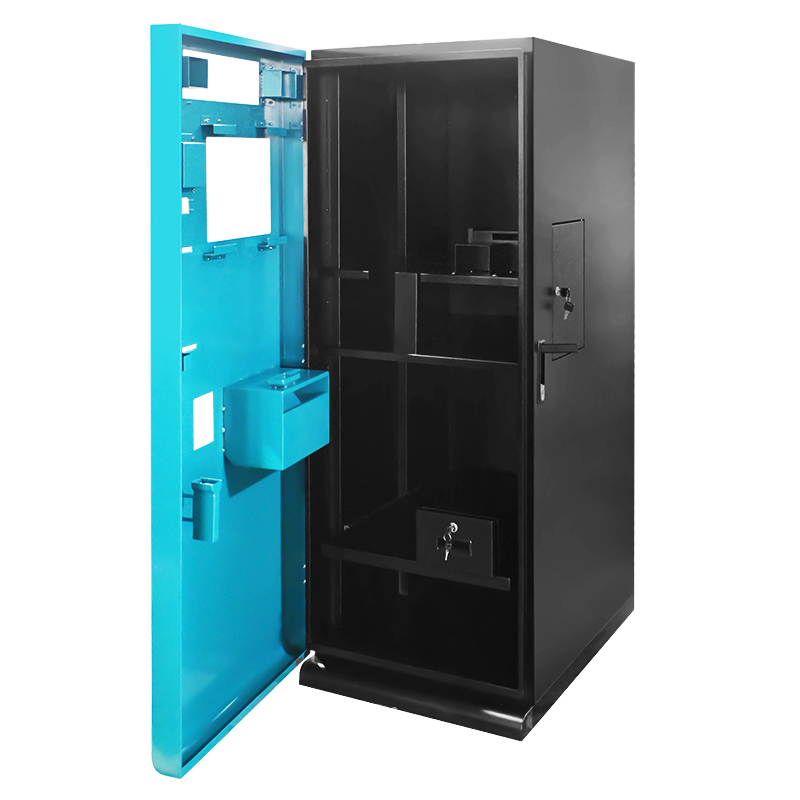

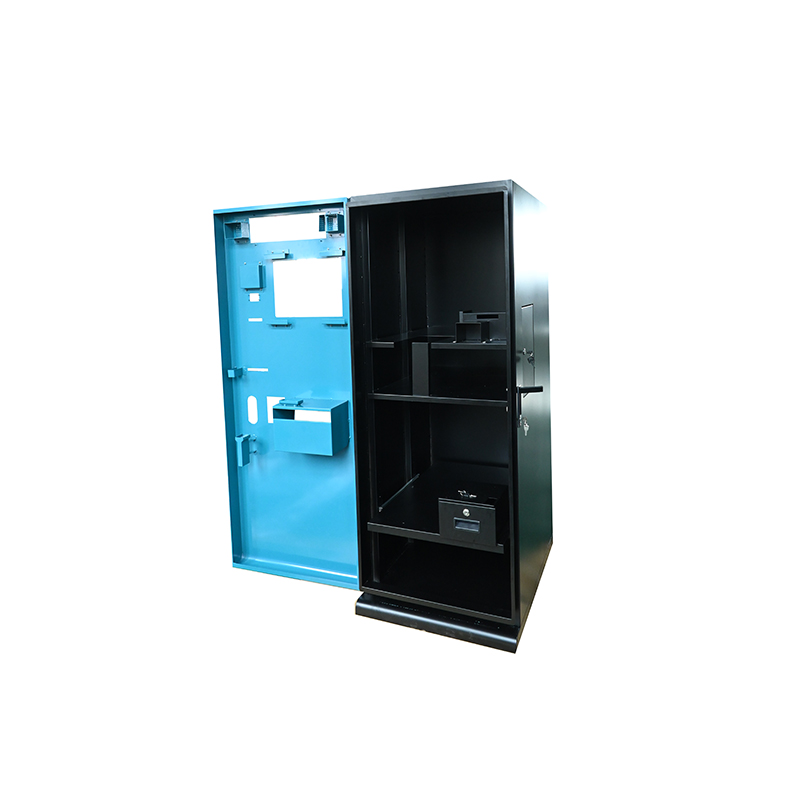

3. Door and Accessory Panel
The door is another engineered component designed with heavy-duty use in mind. Reinforced hinge placement allows it to open fully without sagging. Internally, it is lined with a blue powder-coated panel that features accessory brackets, an envelope holder, and optional lockbox sections. These allow technicians to store forms, keys, ID cards, or manuals right on the door panel—ensuring quick access without cluttering internal shelves.
A rubber sealing strip lines the door perimeter, providing partial dust and moisture resistance. This feature is useful in dusty factory floors or semi-outdoor use cases. In addition, tamper-proof lock systems are included to support both standard key locking and optional electronic keypad locking systems.
4. Base Platform and Stability
The cabinet’s base includes a raised platform that minimizes floor contact and helps protect against moisture ingress. For users in seismic or mobile environments, pre-punched holes allow the cabinet to be bolted to the floor. Adjustable feet or casters can also be added upon request. The base platform can support the entire weight of a fully loaded cabinet without flexing, providing stability and long-term durability.
Applications Across Industries
This secure sheet metal cabinet is not a one-size-fits-all solution—it is a multi-purpose workhorse that can be customized for a wide range of industries. Here are a few scenarios where it excels:
Manufacturing & Assembly Plants: Store spare tools, manuals, electronic devices, or safety kits.
Logistics Warehouses: Use it for barcode readers, label printers, and packaging slips.
Security Rooms: Securely lock documents, USB drives, or radio equipment.
Retail Warehousing: Dual-lock access allows safe storage for cash drawers and sensitive paperwork.
Laboratories: With custom inserts, it can be repurposed for instruments or chemical safety gear.
IT & Communication Rooms: Great for routers, modems, or control tablets with ventilation cutouts.
Customization Options
We understand that every operation is different. That’s why this cabinet is offered as a custom metal fabrication product. Customization options include:
Internal layout (shelves, drawers, lockboxes)
Door lock types (mechanical, electronic, RFID)
Powder coat colors (inside and outside)
Branding and logo placement (laser marking, stickers)
Cable routing holes, fan cutouts, or screen mounts
Fire-resistant linings or explosion-proof designs
If you’re unsure which configuration is right for you, our design and engineering team can work with your sketches, 3D drawings, or application goals to create a tailor-fit solution.
Conclusion
When it comes to heavy-duty industrial storage, compromise isn’t an option. This Secure Multi-Function Industrial Storage Cabinet – Sheet Metal Custom Fabrication delivers the ideal combination of durability, adaptability, and thoughtful design. Whether you’re securing tools, documents, electronics, or valuables, this cabinet offers peace of mind in a streamlined, rugged, and professional-grade format.
Custom fabrication means the cabinet grows with your business—designed for your workflow, your tools, and your security standards. Ready to upgrade your workspace? Contact us today for a quote or sample prototype.
Post time: Apr-22-2025
